With one such avenue for comfort being the advent of massage seats, essentially massage chairs in cars, massage feature, once an emblem of pure opulence in luxury vehicles but has proliferated throughout the industry. The automotive world has steadily progressed beyond mere functionality and has embraced unparalleled comfort for both drivers and passengers.
In order to meet customer's need. Lihua Motor used new technology and experiments to devolp and design a RK-3042 motor to meet car massage seat requirment.
Now let us know more further about the massage seats motor.

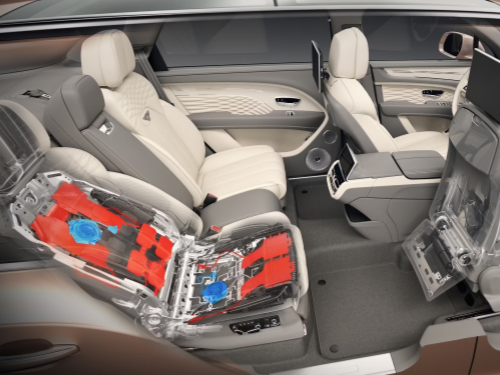

Application of Micro Motors in Massage Seats
1. Driving Function
Micro motors are primarily used in massage seats to power the massage modules. By simulating kneading, vibration, and pressing techniques, they provide users with an experience akin to professional massage. Adjustments to different massage modes and intensity levels rely on the precise control and reliable performance of these motors.
2. Multi-point Drive and Coordination
Modern automotive massage seats typically feature multiple massage points, such as the back, lumbar, and leg areas. These points are independently powered by several micro motors. Through programmed coordination, they achieve synchronized or alternating movements, delivering a comprehensive and comfortable massage experience.
3. Low Noise and Low Energy Consumption
A quiet cabin environment is essential, requiring micro motors to operate with minimal noise. Additionally, given the sensitivity of vehicle batteries to power consumption, micro motors must be designed to meet high-efficiency and low-energy requirements.
4. Intelligent Control and Integration
Micro motors are integrated with intelligent seat control systems, enabling connectivity with vehicle central screens or mobile apps. Users can adjust massage modes and intensity through touch or voice commands, all of which depend on the motor's precise and responsive operation.
Specification Analysis of Motors for Automotive Massage Seats
To meet functional and market demands, micro motors used in automotive massage seats must meet specific technical specifications and performance requirements. Below is an analysis of the motor specifications:
1. Size and Form Factor
Compact Design:
Due to the limited space inside car seats, micro motors must be small and lightweight, typically with a diameter ranging from 10mm to 40mm, ensuring they fit seamlessly into the massage module.
2. Driving Force and Torque Output
High Torque Output:
To drive the massage module for actions like pushing and kneading, the motor must provide sufficient torque, generally in the range of 10mNm to 100mNm.
Stable Performance:
The motor must deliver consistent output over extended periods to avoid fluctuations in massage intensity due to load variations.
3. Speed Range
Stable Speed:
The motor should support a speed range of 500RPM to 6000RPM, accommodating different massage modes such as fast vibration or slow pressing.
4. Noise and Vibration
Low Noise Performance:
To enhance in-cabin quietness, motor operating noise should be controlled below 45dB, with stricter requirements for premium vehicle models.
Smooth Operation:
The motor must be optimized for minimal vibration to prevent additional mechanical noise or user discomfort during operation.
5. Power Consumption and Efficiency
Low Power Consumption:
Given the limited power resources in vehicles, motor power consumption is typically controlled within 5W to 30W, supporting energy-efficient operation.
High Efficiency:
Efficiency levels should reach 70%-85%, reducing heat generation and extending motor lifespan.
6. Operating Voltage
Safe Low-Voltage Operation:
Motors generally operate at 12V or 24V DC, aligning with automotive power system standards for safe and reliable performance.
7. Control Method
PWM Control:
Support for Pulse Width Modulation (PWM) allows for precise speed adjustment and dynamic responsiveness.
Feedback System:
Motors may include Hall sensors or encoders to provide speed and position feedback, enabling intelligent control systems to accurately adjust massage modes.
8. Lifespan and Durability
Long Lifespan:
Motors need to achieve a lifespan of at least 3000 hours under frequent use conditions.
High Reliability:
Durable materials and efficient heat dissipation designs are necessary to withstand prolonged operation or high-load conditions.
9. Environmental Standards and Certifications
Eco-Friendly Materials:
Motors should comply with RoHS , REACH and EMC standards, avoiding hazardous substances.
Temperature Resistance:
To handle various in-vehicle temperature conditions, motors should operate reliably within a range of -20°C to 85°C.
RK-3042 motor car Massage seat solution From Lihua Motor
Operating Volt:12v
Direction :CCW
DC12.0V No-Load :3950±5%rpm Io≤68mA
No-load Speed:3500±10%rpm ,Load Current≤350mA,Load Torque≥650g-cm
Lihua Motor has more than 20+ year experiments for custom and produce DC mini motor.Support 3V 6V 12V 24V 36V DC brush motor , brushless motor (bldc motor), gear motor,stepper motor.Standard dc mini motor and non-standarded motor factory supplier online.
