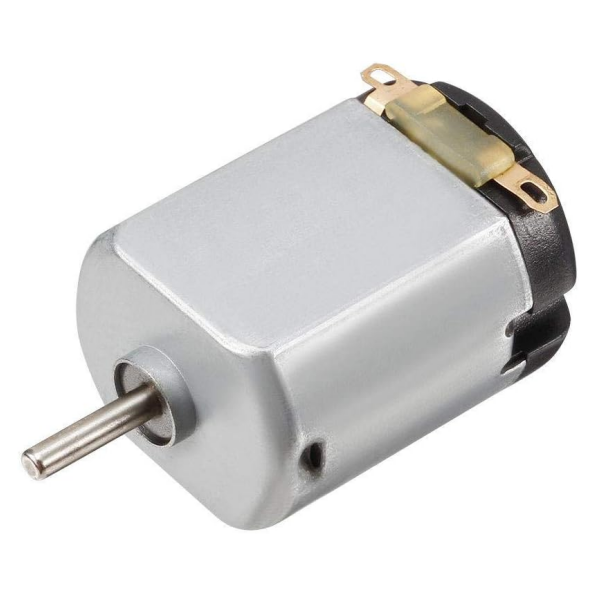

20mm Custom 130 Small Brushed dc Motor For DIY Science Experiments Projects
This is micro 130 motor with black rear cover, which is a Strong Magnetic motor with high torque and high speed.Can use 3V 4.5V 6V 9V 12V power to drive.
20mm 130 min brushed dc motors with its small size and light weight are usually used in DIY science education ,it can be used to combine with plastic fan belt pulley or gear parts.With strong power,it can be used for remote car engine to drive.Now let's go through the following 130 parameter and dimension !
⇔Overveiw
Since all our micro DC motors are custom-made, it is not feasible to list every model and specification. To help you better understand our capabilities, we have selected and displayed some commonly used or high-demand models on this website for reference.
If you have specific project requirements, please feel free to contact our customer service directly and provide your motor parameters or drawings. You may send your request via online chat or email, and our engineering team will respond within 12 hours with a professional solution.
130 motor (3V 22000 rpm) red back cover: High speed, suitable for making wind turbines and small fans, with all copper internal rotor windings.
Size: length 25mm, height 15mm, width 20mm
Shaft: 2mm diameter, 7.5mm length
Speed: approximately 22000 rpm at 3V voltage
Voltage: rated 3V power supply, no-load current about 350mA, locked-rotor current about 1.3A
Weight: approximately 15g
130 motor (6V 20000 rpm) black back cover: High speed ,long shaft ,suitable for DIY projects
Operating Voltage DC 3-9V
Rated Voltage:6V
No-load Current ≤ 350mA
Speed :2000RPM
Shaft Diameter 2mm
Shaft Length 6mm / 0.393″
NOTES: We accpted motor size customization ,all size can be designed as your need.
Custom 130 Small Brushed DC Motor Dimension
Model: FC-130 mini Motor
Shaft Type: Double Shaft
Shaft Diameter: 2mm
Shaft Length: Free-Customization (L)
Motor Body Diameter: 20mm
Motor Body Length: 25mm
Motor Body Height:15mm
Voltage Range: DC 3V-12V
Front Steps Diameter: 6.15mm
Front Step Height: 1.7 mm
Customization Solutions for 130 Micro DC Motors
Lihua Motor offers a variety of customization options for 130 micro DC motors, widely used in DIY science projects, small plastic fan assemblies, electric models, and light-load drive systems.
We support multiple customization methods, including but not limited to:
End Cap Color Customization: The color of the motor end cap can be modified according to customer requirements to enhance product recognition and brand identity.
Lead Wire Soldering: Custom wires of various lengths and specifications can be soldered to the motor terminals for easier integration and assembly.
Fan Blade Assembly: The motor can be combined with plastic fan blades, making it ideal for mini fans or cooling devices.
Metal Gear Output Shaft: The 130 motor can be equipped with a metal gear output shaft for precise transmission in small mechanical systems.
With extensive experience and efficient sample development capabilities, we can quickly turn your design into a tailored motor solution. Feel free to contact us for more customization cases and technical support.
 |
 |
| 130 End Cap Color Customization | 130 Lead Wire Soldering |
 |
 |
| 130 Fan Blade Assembly | 130 Metal Gear Output Shaft |
