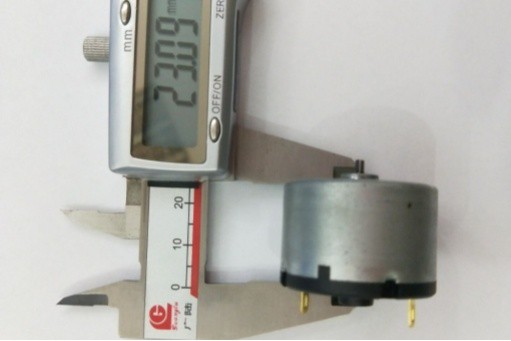

Round Permanent Magnet Brushed DC Motor for aerosol Dispenser
Model: RK-520
Volt:12v
Current:0.03A
No-Load Speed:5500r/min
At Maximum Torque:2.98mNm.
Application:Actuator /Commercial Products/Industrial Tools
Insecticide /Power transmission elevator/Printing machine
Induction Cooker/Alarm Bell
Introduction: Permanent magnet brushed DC motor is equipped with permanent magnets that provide a strong magnetic field and ensure efficient operation. The brushed design of the motor allows for easy maintenance and adjustment of speed and torque.
Product Note: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Permanent Magnet Brushed Dc Motor Parameter
For RK-520 motor we have 300+ solutions for our customers, according to different paramters ,our engineer will rename the new model for motors. Such as RK-520TB-17400,RK-520SA-16470,RK-520SA-15475,RK-520TC-22195..
So if you didnt' find the same name or -parameter from our page,don'worry! All motors are tailored ,such as voltage,speed,torque,current,shaft length ,accessories added. Following sheet is two model we produce for your reference.
| Model | Volatge | No-Load | At Maximum Efficiency | Stall | ||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |
| r/min | A | r/min | A | mNm. | w | g.cm | a | |||
| RK-520TB-20265 | 4-8v | 6v | 4200 | 0.046 | 3656 | 0.245 | 2.97 | 0.97 | 190 | 1.31 |
| RF-520TB-17410 | 8-14v | 12v | 5500 | 0.029 | 4849 | 0.176 | 3.22 | 1.47 | 228 | 1.06 |
Permanent Magnet Brushed Dc Motor Diagram
RK-520 Permanent Magnet Brushed DC Motor Details
Durable Mini Motor Rotor
Crafted from high-quality iron and copper, this motor is built to last, ensuring long-term use and consistent performance.Our commutator is capable of withstanding high-speed revolutions and is made of premium copper material.
Stable Mini Motor Commutator
Enhance permanent magnet brushed DC motor 's performance: To guarantee that your motor operates smoothly and effectively, an electric motor commutator is an essential device.
High Standard Micro Motor Raw Material Control
Lihua Motor strictly controls micro motor raw materials by selecting ISO 9001, IATF 16949, ROHS, and REACH-certified suppliers. All materials undergo rigorous testing, including composition analysis and performance evaluation, to meet international standards.
High-Performance Motor with efficient operation
The Permanent Magnet Brushed DC Motor delivers high performance with an efficiency of up to 85% and a power range of 10W to 25W. It operates at speeds of 1,000 to 12,000 RPM, providing stable torque output. With a lifespan exceeding 2,000 hours and noise levels below 45 dB, it is ideal for applications demanding reliability, low energy consumption, and quiet operation.
Strong Mini Motor Permanent Magnets
The Strong Mini Motor uses high-quality NdFeB (Neodymium-Iron-Boron) permanent magnets, known for their exceptional magnetic strength and thermal stability. These magnets provide a torque density up to 30% higher than conventional ferrite magnets, enabling the motor to achieve efficiencies over 85% and speeds between 3,000 to 15,000 RPM.
Why Choose Lihua Motor ?
High Quality For Permanent Magnet Brushed DC Motor
We have the strict quality and high standard control system and professional team for every motor, Customer Complaint Rate is under 0.8% per year.
Low and Affordable Mini Motor Price
We have our own factory and manufacturing lines which can monitor quality and production processes, all motors are reliable and affordable.
Professional and Well-Reputation
Focusing on the DC micro motors for 20+years,5/4 customers mainly distribute in China ,providing more than 3000 solution for customers and getting the high praise from the worldwide.
Well After-Service
Our customer service will reply in time and keep the positive attitude for our customer

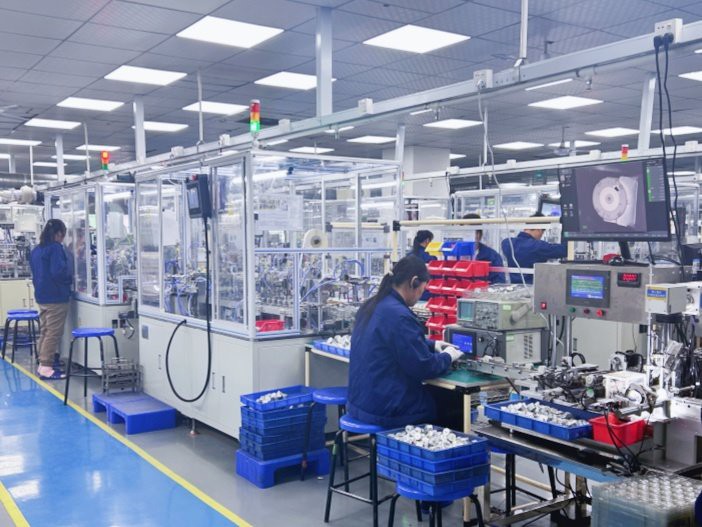

RK-520 Permanent Magnet Brushed DC Motor,Lihua has equipped the line with fully automated production equipment, including active rotor assembly machines, automatic winding machines, automatic welding machines for pressure-sensitive resistors, grinding machines, automatic casing and end cover assembly machines, full machine testing machines, and shaft elongation gap detection machines. This ensures the efficiency and high quality of each micro motor. Our mini motor production capacity reaches , fully meeting market demand.
＞80% Automation Level
Equiped with rotor assembly machines,, automatic winding machines, automatic welding machines for pressure-sensitive resistors, grinding machines, automatic casing and end cover assembly machines, full machine testing machines, and shaft elongation gap detection machines
16,000 PCS Permanent Magnet Brushed DC Motor Daily Production Capacity
2003 Year
Year established
140 Million
| Total Annual Revenue |
340Million
Order recieved
3000+
Projects Completed
PACKING:
We take great care in our packaging procedures. For outer packaging, we rely on sturdy cardboard boxes that adhere to international shipping norms. These boxes are designed to safeguard the products during transit, ensuring their reliability. As for internal packaging, it mainly includes vacuum-formed plastic boxes and foam boxes, offering an added layer of protection. We offer customization options for both interior and exterior packaging to meet specific shipping requirements, considering the diverse range of our products. This tailored approach underscores our commitment to addressing customer needs and delivering top-tier packaging solutions.
