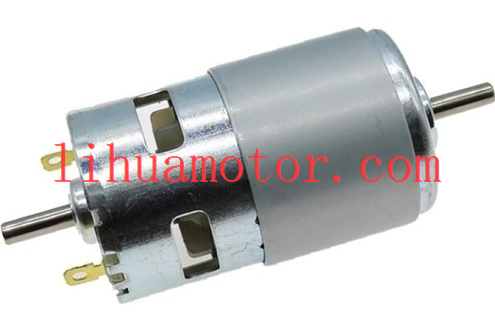

775 motor is made of metal gear, wear-resisting, avoid brush breaking, so with long serving life,the 12v dc electric motor has the characteristic of high speed, and small size.Choose premium raw materials that are easy to use, glossy, and generous,775 12 volt dc electric motor high torque can be installed with various tools such as grinding wheels, cutting, chucks, chucks, etc.In order to reduce the high temperature,Lihua Motor adapt the holes design,lower the heating when 775 12v mini motor is working.
Rated voltage: DC12V
Working voltage: 12V
Speed:5660 to 18700 RPM
Rated current:0.30A
Rated power:80W, 120W or 150W
Shaft:5mm
Shaft Length: Can be desig as your need.
Mounting hole diameter: M4 screw
| Model | Volatge | No-Load | At Maximum Efficiency | Stall | ||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | C | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| RS-775SM-5034 | 12-36V | 12V | 5660 | 0.63 | 4850 | 0.63 | 578 | 29 | 4025 | 21.3 |
| RS-775SM-7513 | 6-15V | 12V | 18700 | 2.2 | 16000 | 2.2 | 710 | 117 | 5100 | 84.0 |
775 12 volt dc electric motor features
Ball Bearing
Rolling bearings have smaller friction coefficients and higher rotational accuracy, better operating stability and life, and can withstand higher rotational speeds and impact loads.Ball bearings help reduce energy loss and extend the life of the motor by reducing excess heat generated by friction between moving parts.
High-intensity Magnetic Tile
The 775 12 volt dc electric motor uses NdFeB magnets, which are reliably stable and will not lead to magnetic degradation or failure of the micromotor over long periods of time.In addition, NdFeB magnets have high resistance to oxidation and oxidation, which can resist the effects of the external environment on the performance of the 775 motor.
Well-Performance High Torque 775 motor
With a lifespan of 2,000+ hours, high-temperature resistance up to 180°C, low noise (<45 dB), and anti-oxidation design, the 775 motor ensures stable, durable performance for demanding applications.
