20.4MM Small 130 Size Brushed Motor for Model Airplane
Volt Range : DC voltage below 36V
130 Motor Size :Max 15.4mm*25mm
Model Names:
3V 130 motor / 12V 130 small motor / 130 DC Mini Motor Small Electric Motors
130 Hobby Size Motor
Model Types You can refer:
FF-130SH-09450 / FF-130SH-14240 / FF-130SH-2356
FF-130SH-13220 / FF-130SH-14200 / FF-130SH-16140
| Model | Voltage | No-load | At Maximum Efficiency | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |
| r/min | A | r/min | a | mN.m | W | g.cm | a | |||
| FF-130SH-09450 | 8v-14v | 12.0v | 7296 | 0.023 | 5903 | 0.092 | 1.23 | 0.68 | 66 | 0.42 |
| FF-130SH-14240 | 2v-7v | 6.0v | 7187 | 0.038 | 5992 | 0.170 | 1.13 | 0.66 | 69 | 0.85 |
| FF-130SH-15165 | 2V-4V | 3.0V | 4600 | 0.118 | 3360 | 0.316 | 1.46 | 0.65 | 55 | 0.85 |
| FF-130SH-13270 | 4.0V-7.0V | 6.0V | 6053 | 0.032 | 5004 | 0.153 | 1.27 | 0.57 | 74.8 | 0.73 |
| FF-130SH-12250 | 9.0-13.0V | 12.0V | 12150 | 0.078 | 9840 | 0.335 | 2.63 | 2.70 | 141.0 | 1.42 |
What is definition of model types ?
Take a FF-130SH-09450 mini motor for example:
Firstly "F" means motor shape is flat ; second "F" means motor brush type is metal brush."1" means rotor diameter; "3"means the length of magnet or case length;
"0" refers to the number of rotor slots is 3 slots;"S" refers to magnet shape is tile. "H" mens some special explanation for mini motor ,mostly used to describe the motor end cover material.Here the meaning is "Metal with Resin end cover "; "09" means wire diameter 0.09mm;"450" refers to number of rotor windings.So if you know the above meaning for mini motor types.You will understand why we didn't list all our motor types we have customed for our customers. Lihua Motor has more than 20000 solutions for our customers.So if you want to find a reliable supplier / manufacturer in China,welcome to contact us. Our engineers can give your custom 130V motor solutions.We are not only a dc micro motor factory ,also a mini motor solution provider/designer.
Applications for 3V 6V 7.2V 12V 130 Size Brushed Motor
Adult products/Beauty instrument/Car headlight adjustment
Car side lock/medical massager/Washing machine lid lock
CUSTOM YOUR 130 Size Brushed Motor
FF-130SH 12V Metal Brush Motor for Micro Water Pump Applications
Leveraging extensive industry experience and advanced technical capabilities, the Lihua Motor team recommended and customized the FF-130SH 12V metal brush motor. Key optimizations included:
Performance Optimization:
Reinforced metal brushes enhanced electrical conductivity and wear resistance.
The motor's speed was set at 6000 RPM, achieving optimal flow and pressure output under the pump's load conditions.
Size Adaptation:
The 130 Size Brushed Motor features a standardized compact design (15.5mm diameter, 27.5mm length), perfectly fitting the client's pump housing.
Customization of the motor shaft length and diameter ensured precise coupling with the pump impeller.
Compact and lightweight, the Small 130 Size Brushed Motor is designed for efficiency and powerful performance. It boasts a remarkable torque and excellent power output, making it a reliable choice for various applications. Equipped with high-quality bearings, this motor ensures reduced friction, contributing to improved overall efficiency. Its durable brush system enhances its lifespan, providing long-lasting and dependable operation.
PRODUCT QUALIFICATION
Since its establishment in 2003, our focus has been on the research and production of micro motors. Over the past two decades, we have assembled a robust team comprising over 300 experienced professionals in production line technology.
We have introduced more than 20+ specialised automated mini motor production lines, covering the entire process from research and development to production, ensuring comprehensive control over quality. This extensive production layout and years of accumulated experience have laid a solid foundation for our remarkable achievements.
In addition to diverse production line technologies, we offer a variety of production models with support for customisation. Regardless of the uniqueness of customer demands, we provide professional liaison services. Furthermore, we can support additional processing of spare parts to meet the evolving needs of our customers.
Certifications
Create a comprehensive solution for 130 Size Brushed Motor
IATF16949
CE
UL Certification
ISO9001

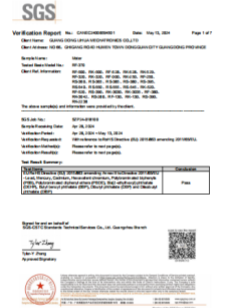

RoHS
Reach
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer who has specialised in small DC motors for over 20 years.
Q:Can this motor be used in wet or humid environments?
A: While the motor is designed for use in dry environments, it can be used in damp or humid environments with proper sealing and protection.
Q: Do you have certificates for the motors?
A: Yes, we have CE, IATF16949, ISO9001, ROHS, REACH, SGS, etc. If you have the other certificate requirement, we can apply it for you.
