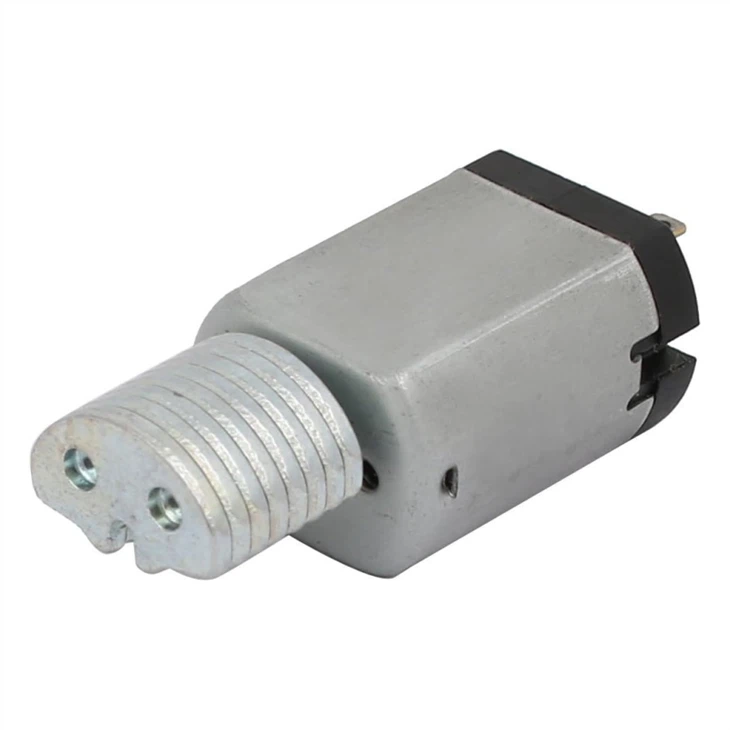

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
16mm Diameter FF-030 Motor Basic Technical Parameters
FF-030 12mm in diameter and 15.5mm in length, the FF-030 is incredibly small and lightweight, making it ideal for space-constrained applications.With a maximum speed of 10700 RPM, this motor delivers the power you need to drive your mini water pump efficiently.
|
Item |
Precise metal brush motor |
|
Motor Type |
FF-030 |
|
Rated Volt |
DC1.5V-12V |
|
No-load Speed |
1000RPM to 15000RPM |
|
Output Shaft Length |
15.0±0.5mm Or Customized |
|
Direction of Rotation |
CW/CCW |
|
OEM & ODM |
Accepted |
|
MOQ |
1700 units |
|
Capacity |
30,000 units/month |
|
Package |
Carton |
|
Place of Origin |
Dongguan, Guangdong, China |
|
Delivery Date |
Depending on the quantity, please ask the salesman. |
|
Port of Shipment |
Shenzhen / Hong Kong |
Customized 16mm Diameter FF-030 Motor Variable Speed Parameter Types Table
|
Model |
Voltage |
No Load |
At Maximum Efficiency |
Stall |
||||||||
|
Operating Range |
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|||
|
r/min |
A |
r/min |
A |
mN-m |
g-cm |
w |
mN-m |
g-cm |
A |
|||
|
FF-030PA-10180 |
DC 3.5-6.0V |
DC 5.0V |
11700 |
0.05 |
9230 |
0.19 |
0.5 |
5.1 |
0.48 |
2.35 |
24 |
0.7 |
|
FF-030PA-09180 |
DC1.0-5.0V |
DC 5.0V |
10500 |
0.046 |
8140 |
0.16 |
0.44 |
4.5 |
0.37 |
1.96 |
20 |
0.55 |
|
FF-030PK-08250 |
DC1.0-6.0V |
DC 2.5V |
4100 |
0.028 |
2940 |
0.071 |
0.21 |
2.1 |
0.064 |
0.74 |
7.6 |
0.18 |
|
DC 5.0V |
10500 |
0.041 |
8020 |
0.13 |
0.43 |
4.4 |
0.36 |
1.81 |
19 |
0.43 |
||
|
FF-030-09210 |
DC 4.5-6.0V |
DC 5.0V |
10400 |
0.045 |
8000 |
0.15 |
0.42 |
4.3 |
0.35 |
1.81 |
19 |
0.5 |
|
*Note: All above typical technical data for reference, special requirement can be customized. 1mNm= 1Ncm = 10.2gcm Customized product models name are available upon request
|
||||||||||||
Hobby Electric Motors 16mm Diameter FF-030 Motor Dimension
Standard Size Information for FF-030PK Mini Motor
FF-030 Body Size: 18.6*15.5*12mm (L*W*H) Output Shaft Length: L±0.5mm (Free Custom) Output Shaft Diameter: 1.5mm Screw Hole Size:2mm*0.4 Screw Hole Distance: 10.0±0.1mm Front Step Height:1.5mm Weight: 10 grams Unit:mm Differences Between FF-030 ,FF-031 and FF-032 Mini Motor
| DC Motor Type | Volt |
Standard Motor Size (L*W*H) |
Brush Type | Direction Of Rotation | Torque | ODM/OEM |
| FF-030PK/FF-030 | 1V-12V | 18.6mm*15.5mm*12mm | Precious Metal Brushed | CW/CCW | 19.3g.cm(3V) | Accepted |
| FF-031PK/FF-031 | 1V-12V |
20mm*14mm*12mm |
Precious Metal Brushed | CW/CCW | 21.0g.cm(3V) | Accepted |
| FF-032PKFF-032 | 1V-12V | 18mm*14mm*12mm | Precious Metal Brushed | CW/CCW | 15.5g.cm(3V) | Accepted |
Some Customized 030 Mini Motor Types Solutions Display
At Lihua Motor, we specialize in providing tailored micro motor solutions to meet diverse application needs. This showcase features several customized 030 mini motor types, each developed based on specific customer requirements across industries such as smart home devices, personal care tools, and compact robotics. From enhanced torque output to ultra-low noise designs and extended service life, these motor variants demonstrate our R&D team's ability to deliver high-performance, precision-engineered solutions. Whether for high-speed vibration, stable rotation, or miniaturized structural constraints, our customized 030 motors are built to exceed expectations and drive innovation.
